| Ονομασία μάρκας: | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Αριθμός μοντέλου: | 300 Series 316 |
| Μούβ: | 1 ton according to products |
| τιμή: | διαπραγματεύσιμα |
| Όροι πληρωμής: | L/C, T/T, D/P, Western Union |
| Ικανότητα εφοδιασμού: | 2000 ton/Month |

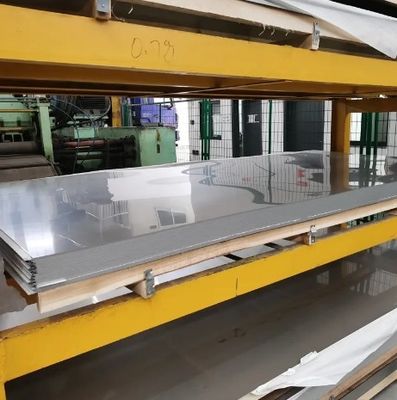

316 stainless steel sheets are flat-rolled products made from austenitic stainless steel containing molybdenum (Mo). They excel in corrosion resistance, especially in chloride and acidic environments, making them ideal for demanding industrial applications.
| Element | Content (%) | Function |
|---|---|---|
| Chromium (Cr) | 16.0–18.0 | Forms a passive oxide layer for corrosion resistance. |
| Nickel (Ni) | 10.0–14.0 | Stabilizes austenitic structure, improves ductility. |
| Molybdenum (Mo) | 2.0–3.0 | Enhances pitting/crevice corrosion resistance. |
| Carbon (C) | ≤0.08 (≤0.03 for 316L) | Low carbon minimizes carbide precipitation during welding. |
| Property | Value |
|---|---|
| Tensile Strength | 515–690 MPa |
| Yield Strength (0.2% Offset) | ≥205 MPa |
| Elongation (50mm Gauge) | ≥40% |
| Hardness (Rockwell B) | ≤95 HRB |
| Density | 8.0 g/cm³ |
| Grade | UNS Designation | Features | Typical Use Cases |
|---|---|---|---|
| 316 | S31600 | Standard grade, 0.08% max carbon. | General industrial equipment. |
| 316L | S31603 | Low carbon (≤0.03%), superior weldability. | Chemical tanks, marine components. |
| 316Ti | S31635 | Titanium-stabilized, resists sensitization. | High-temperature exhaust systems. |
| 316H | S31609 | Higher carbon (0.04–0.10%), elevated temperature strength. | Heat exchangers, furnace parts. |
| Finish | Description | Application |
|---|---|---|
| 2B | Smooth, moderately reflective (cold-rolled + annealed). | General-purpose machinery, food processing. |
| BA (Bright Annealed) | Mirror-like polish, high reflectivity. | Decorative panels, medical devices. |
| No. 4 (Brushed) | Uniform directional satin texture. | Elevator interiors, architectural cladding. |
| HL (Hairline) | Fine parallel polishing lines. | Appliance surfaces, signage. |
| Parameter | Range |
|---|---|
| Thickness | 0.5mm – 50mm |
| Width | 1000mm – 2000mm |
| Length | 2000mm – 6000mm |
Seawater piping systems: Resists saltwater corrosion.
Ship hulls and deck fittings: 316L sheets for welding durability.
Reactor vessels: Handles sulfuric/phosphoric acids.
Heat exchangers: 316Ti for thermal cycling resistance.
Surgical instrument trays: BA finish for sterilization compliance.
Bioreactors: 316L with electropolished surfaces.
Coastal building facades: No.4 finish for aesthetics + corrosion resistance.
Structural supports: High-strength 316H for load-bearing parts.
Brewery tanks: 2B finish, easy to clean.
Conveyor belts: Non-contaminating surface.
| Aspect | 316 | 304 |
|---|---|---|
| Mo Content | 2–3% | 0% |
| Corrosion Resistance | Superior in chlorides | Moderate |
| Cost | 20–40% higher | Lower |
| High-Temperature Use | Up to 800°C | Up to 650°C |
Laser/Plasma Cutting: Use nitrogen assist gas to minimize oxidation.
Shearing: Ensure blade clearance ≤10% of sheet thickness.
Filler Material: Use ER316L for 316/316L sheets.
Technique: TIG welding for precision; post-weld annealing recommended for critical applications.
Bending Radius: ≥1x thickness for 90° bends (annealed sheets).
Deep Drawing: Use 316L with ≥60% elongation.
| Standard | Equivalent Grades |
|---|---|
| ASTM (USA) | 316 (A240), 316L (A480) |
| EN (Europe) | 1.4401 (316), 1.4404 (316L) |
| JIS (Japan) | SUS316, SUS316L |
Why Choose 316 Stainless Steel Sheets?
Ideal for environments demanding corrosion resistance, hygiene, and durability, 316 sheets bridge performance and longevity. From marine engineering to cutting-edge medical devices, they deliver unmatched reliability. For non-corrosive or budget-sensitive projects, consider 304 stainless steel as a cost-effective alternative.
Optimize Thickness: Use thinner sheets (e.g., 2mm vs. 3mm) where structurally feasible.
Local Sourcing: Chinese mills (e.g., TISCO, Baosteel) offer competitive pricing.
Recycled Content: Specify 70%+ recycled 316 scrap to reduce costs by ~15%.
